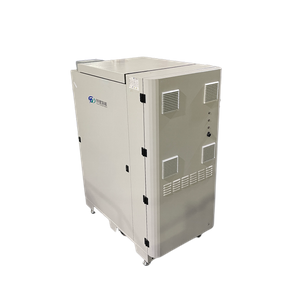

H2ES-5
H2ES-5 combined heat and power (CHP) unit consumes natural gas and generates electricity and useful heat simultaneously. With consumption of 1.5Nm3/h of natural gas, it can output 7.5kW heat and 5kW power at the same time. The overall efficiency is up to 93.5% and can reduce carbon emmission by 30%. It is a highly efficient solution to reducing energy bills and cutting carbon footprint. The produced electricity can be used on-site to power a range of appliances, while any excess electricity can be exported to the grid. The generated heat can be used to produce hot water.
It is ideal for residential and small business buidlings, such as multi-family houses, villas, apartments, hotels, resorts, office buildings, etc.
H2ES-5 is composed of 5 parts:
reformer module, fuel cell stack module, electrical control module, multifunctional terminal and the base frame.
| Items | Parameters | Remarks |
| Model No. | H2ES-5 | |
| Fuel | Natural Gas, LPG, Biogas | |
| Fuel consumption | <1.5Nm3/h | |
| Rated Output Power | 5kW | can be adjusted to be 2.5KW |
| Rated Output Heat | 7.5kW | can be adjusted to be 3.75kw |
| Total efficiency | 85%-93.5% | |
| Electrical efficiency | 35%-40% | |
| Output Power Voltage | 380VAC, three-phase | or 110V AC, single-phase or custom design |
| Output hot-water temperature | Max. 50ºC/70ºC | |
| Output hot-water flow | 300 kg/h | based on the water temperature difference at 10℃ |
| Certificates | CE-LVD/CE-EMC/CE-GAR | |
| Dimensions(L*W*H) | 0.75*1.23*1.63m | |
| Weight | Approx 600Kg | |
| Warranty | 1 year (free) or 10 years (optional) |
When installing H2ES-5 fuel cell CHP system, you will need an natural gas connection as well as an extra flue pipe for the system.
Notice: the existing flue pipe which discharges the exhaust gases of your condensing boiler can't be used.
In addition, the installation room must have a connection to the network, tap water, drain and the state power grid.
Last, a generating electricity meter as well as a bidirectional electricity meter is required to measure the electricity kWh. This may vary depending on the building.
The maintenance costs will be charged at a fixed rate every year. There are no more hidden costs!
For maintenance, our distributors will offer a 10-year maintenance contract. This maintenance contract is necessary for the funding via KfW.
The system can be maintained remotely via a network connection. So minor faults can be quickly rectified without the need for a technician to be on site. In addition, the system must be checked every 12 months. For this purpose, the system can't work for 1-2 days and all necessary tests will be conducted.
It makes much sense to couple fuel cell system with other energy technologies.
Depending on the building type and consumption,
1) coupled with solar PV system is a good option.
2) coupled with a heat pump for buildings with very high heat demand is also a good option. The electricity generated by the fuel cell CHP is used to power the heat pump.
3)Some further couplings are conceivable.
With H2ES-5 fuel cell CHP system, the natural gas prices go up but your energy costs go down! It's time to get more out of natural gas!
Contact us RIGHT NOW if you are interested to be our distributors / agents！
.
