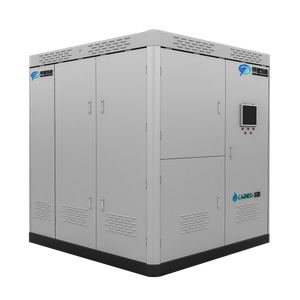

200KW Pure Hydrogen Fuel Cell Power Generation System

CarNeu series Fuel cell CHP system uses pure hydrogen(99.97% purity) as the main fuel. Through the highly efficient electrochemical reaction and waste heat recovery, the system provides sufficient electrical energy and thermal energy.
CarNeu-200 CHP system consumes 13Kg/h hydrogen and can output 200KWh power and 160KWh heat at the same time. It is suitable to be installed nearby chemical plants where there is enough chemical byproduct hydrogen produced, so that there is no need to transport the hydrogen and can save the high cost of hydrogen storage. This helps chemical plants save much energy bills as well as reduce the CO2 emissions.
SKU:
Availability:
Quantity:
  • CarNeu-200

Product Features
1. Fully eco: no carbon emissions at all
2. saving power bills: it can generate 200kwh electric energy per hour which can be self-used or sold to the grid
3. saving heating bills: it can generate 160kwh heat per hour which can be used to heat water or in other forms of heating
4. stable power supply: unlike the solar and wind power generator, the hydrogen fuel cell cogenerator is unaffected by time and the environment.
5. Good low-temperature performance: unlike lithium-ion batteries, fuel cells are not affected by low temperature. It has very good low-temperature performance and can run normally all the year.

Specification
ItemsParametersRemark
FC type
LT-PEM

Fuel
99.97% purity H2
as per ISO14687 standard
Fuel Consumption
13kg/h

Power Output
200kW

Heat Output
160kW

Electrical Efficiency
> 50%

Total Efficiency
85%

Heat Flow
Max. 60ºC/65ºC
based on the water temperature difference at 30℃
Power Connections
380VAC, three-phase

Dimensions1* 40 feet container
WeightAbout 2T
