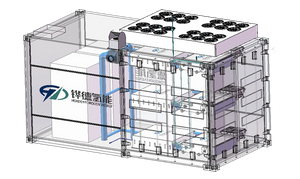

100KW Pure Hydrogen Fuel Cell CHP System (CarNeu-100)

CarNeu-100 is designed for industrial / commercial use with 100kW electrical power output. Consuming pure hydrogen (99.97% purity), it is a good solution of zero-carbon-emmission power supply. If heat is needed as well, heat energy aslo can be collected and output in the form of hot-water.

Under on-grid running conditon, CarNeu-100 consumes 67Nm3/h pure hydrogen to generate 100kW power and 87kW heat simutaneously. Under off-grid running condition, it needs to consume 78Nm3/h pure hydrogen to generate 100kW and 117kW heat at the same time.

It is suitable to be installed nearby the chemical plants where there are enough hydrogen byproduct or coupled with water electrolysis hydrogen production system. It is a powerful tool to abosorb hydrogen and convert it to be other forms of energies.

SKU:
Availability:

Quantity:


Inquire Add to Basket

Model:
CarNeu-100

Product Features

Fully eco: no carbon emissions at all
High energy conversion efficiency: the electrical efficiency is up to 46% and the overall efficiency is up to 93%
Stable power supply: unlike the solar and wind power generator, the hydrogen fuel cell cogenerator is unaffected by time and the environment.
Good low-temperature performance: unlike lithium-ion batteries, fuel cells are not affected by low temperature. It has very good low-temperature performance and can run normally all the year.
Long-period energy storage + use solution: rich solar energy in summer can be stored in hydrogen form and converted to be power & heat in winter by fuel cell system

Specifications

Items	Parameters	Remark
Product Name	Hydrogen fuel cell CHP System
Product Model	CarNeu-100
Application Scenerios	as power supply for Commericial use / Industrial use
Grid Connection	On-grid Off-grid
Rated Power Watts	100kW
Output Power Voltage	380V AC	customizable
Fuel Consumption	78Nm3/h 67Nm3/h
Rated Heat Watts	117kW 87kW
Electrical Efficiency	42.6% 45.9%
Total Efficiency	93% 94%
Output hot-water temp.	60ºC
Cold Start Temp.	-20℃	customizable
Cold Start Time	1 hour
Dimensions	32.22.3m
IP Grade	IP54
